ASX: LIB / Cuyuni Mining District, Guyana / 3 September 2026
Visible gold at Oko North
Maiden fieldwork has identified coarse, angular visible gold in the artisanal workings at Oko North, together with basement shearing, quartz veining and hydrothermal alteration. The Company interprets a proximal hard rock source within its own tenure. Fifty-five rock chip samples are with the laboratory.
Maiden fieldwork, 3 September 2026
Liberty Metals has reported the first results from its maiden field campaign at Oko North. The Company has identified coarse visible gold in the artisanal workings, together with basement shearing, quartz veining and hydrothermal alteration, and interprets the gold as fed from hard rock sources within its own tenure. Fifty-five rock chip samples have been submitted for laboratory assay, with results expected in four to six weeks.
Coarse, angular visible gold
Key
Visible gold has been observed in a number of the workings and in associated quartz veining. The Company reports the gold as coarse and angular in morphology, and interprets it as fed directly from hard rock sources within the tenure.
Angular gold does not travel far
Why it matters
Gold transported any distance down a drainage system is rounded and flattened by abrasion. Coarse angular grains indicate the source is close by. Taken with the Company’s drainage basin analysis, this is the first field evidence pointing to a proximal hard rock source rather than gold shed from elsewhere.
Basement shearing confirmed
Structure
Field mapping has identified basement shearing, quartz veining and hydrothermal alteration within the interpreted Oko structural corridor. The appendix records shearing in basement granites with quartz stockwork veining, and a weathered quartz vein carrying boxwork textures.
Boxwork textures in weathered vein
Weathering
Boxwork forms where sulphides have oxidised out of a vein and left a lattice of cavities behind. Its presence indicates a sulphide bearing hard rock vein that has been weathered in place, rather than transported material.
Fifty-five rock chips submitted
Pending
Fifty-five rock chip samples have been collected from priority areas across Oko North and submitted for laboratory assay. Results are expected in four to six weeks and will be the first quantitative data returned from the tenure.
The soil program is running
Underway
The maiden systematic soil geochemical program of approximately 5,000 samples commenced in the September quarter and is ongoing, analysed in field by pXRF and DetectORE™ to define and prioritise gold-in-soil anomalies ahead of trenching and maiden drill targets.
From the field
Photographs released by the Company with its announcement of 3 September 2026. Where a coordinate was published, hovering or tapping a photograph highlights the matching point on the detail plan below.

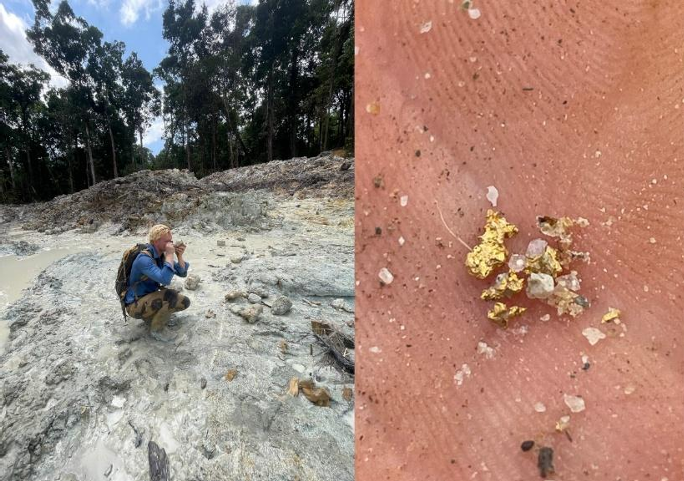

Coarse, angular visible gold
Company geologists mapping exposed outcrop, and coarse angular gold recovered from the artisanal mines. Angular grains have not travelled far. Gold carried any distance down a drainage is rounded and flattened by abrasion, so the morphology points to a source close to where it was found.
265862mE 716636mN

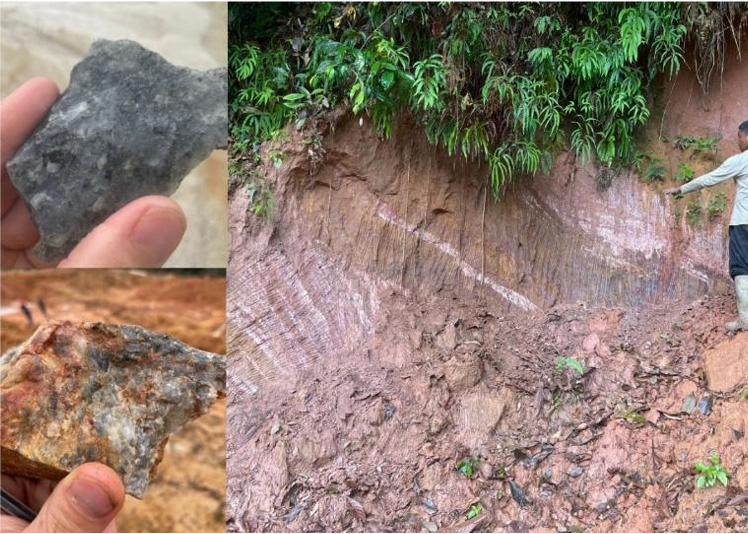

Quartz veining and basement shear
Grey quartz from veining at the workings, a weathered quartz vein carrying boxwork textures, and an outcrop face showing shearing in basement granites with quartz stockwork. Boxwork forms where sulphides have oxidised out of a vein in place, which indicates hard rock rather than transported material.
267163mE 715212mN and 266021mE 713510mN

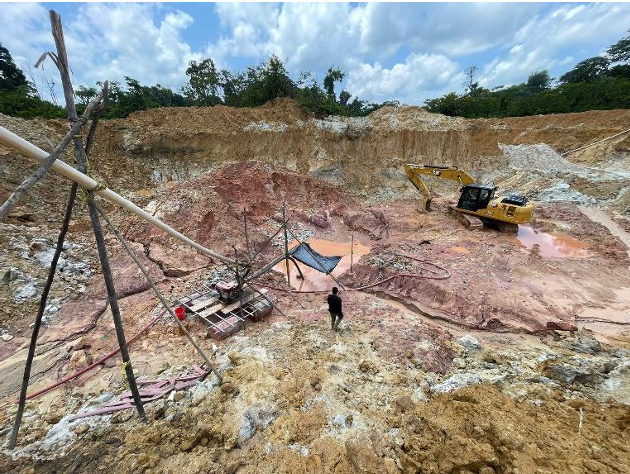

Alluvial and saprolite, both
Active workings recovering gold from alluvial and saprolite sources. Saprolite is weathered bedrock still sitting where it formed. Miners working saprolite are taking gold from rock that has not moved, which is a different proposition from washing gravel out of a creek bed.
Oko North detail plan
Drawn to true scale in WGS84 UTM Zone 21N. The three observation points are plotted from the coordinates published in the appendix to the announcement. The tenement outline and the alluvial workings follow the Company’s own map, georeferenced from its printed grid. One kilometre on the ground is one hundred pixels on the sheet in both directions. Hover a photograph above to highlight its location here.
What is accurate and what is not. The frame, the grid, the scale bar and the three labelled observation points are accurate: the coordinates come from the Company and the projection is true. The tenement outline and the alluvial workings are traced by eye from the Company’s published map against its printed grid, so their positions are close but not surveyed. The drainage basins and the shear corridor are schematic. Do not use this plan to determine the location or extent of any permit.

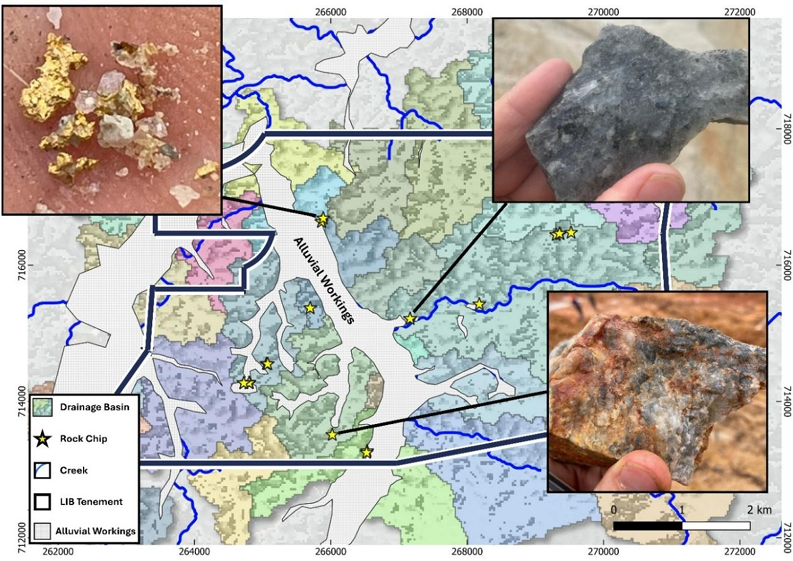

The Company’s own map
Liberty Metals released this map with the announcement, showing rock chip sample locations, the alluvial workings and the drainage basins across Oko North. It shares the same grid as the detail plan above, so the two can be read against each other.
Oko North, rock chip locations, workings and drainage basins
Source: Liberty Metals Ltd, ASX announcement dated 3 September 2026. Rock chip locations are marked by stars and assays are pending. The alluvial workings run north to south through the centre of the tenement, following the creek system.

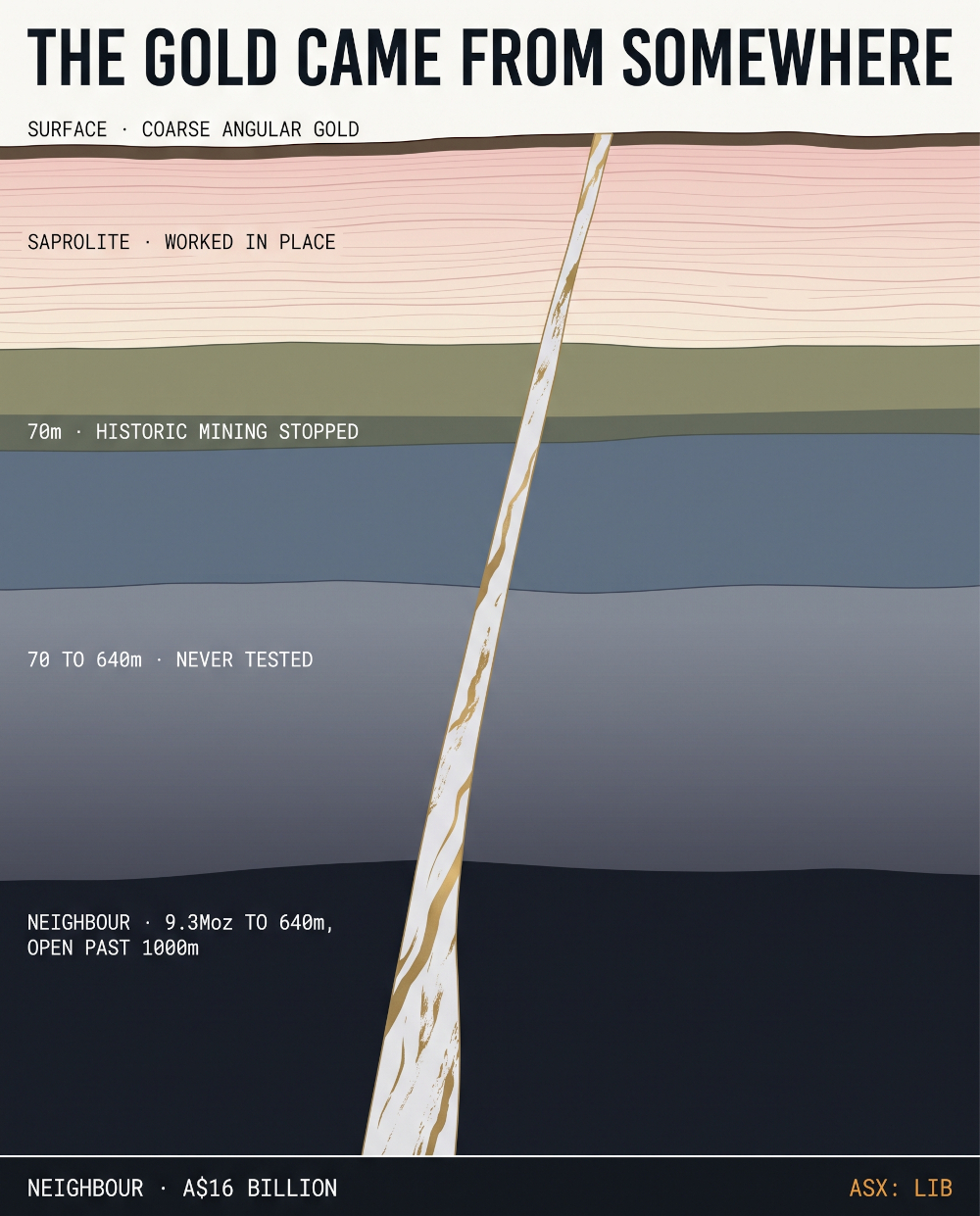

The vertical gap
Everything recovered from Liberty’s tenure to date has come from surface material. The neighbouring deposit is mined from an open pit reaching roughly 640 metres, with mineralisation reported open past 1,000 metres. Between the base of the historic workings and the depth at which the neighbour is still returning grade lies an interval that has never been tested anywhere on Liberty’s ground.
Historic mining stopped near surface
70m
Artisanal and historic workings across the district reach roughly 70 to 100 metres. Peters Mine produced 41,915oz at head grades around 40 g/t entirely from within that range.
The neighbouring pit reaches 640m
640m
The Kairuni open pit resource was calculated to a depth of approximately 640 metres, with a separate underground resource beneath it grading higher than the pit at 3.12 g/t Inferred.
Still open past 1,000 metres
Open
Mineralisation at Block 4 has been traced to depths of over 1,000 metres down dip and remains open below the limits of the defined resource.
Grades increase with depth
Trend
The updated resource lifted Indicated grade by 11.6 per cent, which the operator attributed to increasing grades at depth in the Block 4 area.
Depth and resource figures describe ground held by G Mining Ventures and G2 Goldfields, not Liberty Metals. They are drawn from Reunion Gold and G Mining Ventures disclosures and are not necessarily indicative of mineralisation within Liberty’s tenure. No drilling has been undertaken and no Mineral Resource has been estimated on the Company’s ground. The cross section is illustrative and not to scale.
The case for a system at depth
Every ounce mined on this tenure to date has come from surface material. The question the exploration program is built to answer is what sits beneath it.
Historic mining stopped at 70 metres
District precedent
Peters Mine, the first gold mine in Guyana, produced 41,915oz between 1905 and 1909 at head grades around 40 g/t, all of it from within 70 to 100 metres of surface. Fewer than 20,000 metres of drilling have been completed on that property in its entire history.
The systems continue past 400 metres
District precedent
Peer drilling in the district has returned 14.3m at 8.2 g/t from 433 metres downhole, with resource zones left open below 350 metres vertical. The shear hosted orogenic style carries well below anything reachable by hand.
A vertical gap of 300 metres or more
The opportunity
Between the depth artisanal miners can reach and the depth at which neighbouring systems are still returning grade lies a vertical interval that has never been tested anywhere on Liberty’s ground. Defining a drill target into that interval is the stated objective of the current program.
Surface evidence now points downward
New
Before this campaign the argument for a hard rock source rested on the presence of workings. It now rests on coarse angular gold, mapped basement shearing, quartz veining, hydrothermal alteration and boxwork textures, all reported from within the tenure.
Assays are the next gate
Sequence
Rock chip results in four to six weeks, then coherent gold-in-soil anomalies from the 5,000 sample program, then trenching, then maiden drill targets. Each step either supports the interpretation or does not.
Where this sits
Oko North directly abuts ground held by G2 Goldfields, now consolidated into G Mining Ventures, in proximity to the New Oko Discovery. The Oko district hosts approximately 9.3Moz of gold delineated over the past five years, all of it on ground held by other parties. Liberty Metals holds approximately 180km² across 40 granted permits in two consolidated blocks, on which no Mineral Resource has been estimated and no drilling has been undertaken.
Important. This article summarises the ASX announcement by Liberty Metals Ltd dated 3 September 2026 and refers to earlier announcements dated 12 and 21 August 2026. Photographs are reproduced from that announcement. The observations reported are visual and qualitative. They are not reported as, and are not indicative of, gold grade or the presence of an economic mineral deposit, and require confirmation by assay. No sampling or assay results were reported in the announcement. Fifty-five rock chip samples have been submitted with results expected in four to six weeks. Oko North directly abuts ground held by G2 Goldfields, now consolidated into G Mining Ventures. The Oko West and Oko-Ghanie deposits are located outside Liberty Metals’ tenure and are owned by third parties. Nearby discoveries or interpreted geological similarities are not necessarily indicative of mineralisation within the Company’s tenure and do not guarantee exploration success. The Project is a greenfields exploration project, no drilling has been undertaken, and no Mineral Resources or Ore Reserves have been estimated on the Company’s tenure. General information only; not investment advice.
